Floor Plan & Layout.

Explore the detailed floor plans and architectural drawings for Twin Valley Kitchen — from full room layouts and kitchen elevations to cabinet specifications and appliance placements, all meticulously dimensioned in millimeters.

Floor Plan Gallery

View detailed floor plan images and architectural drawings for the Anaya project.

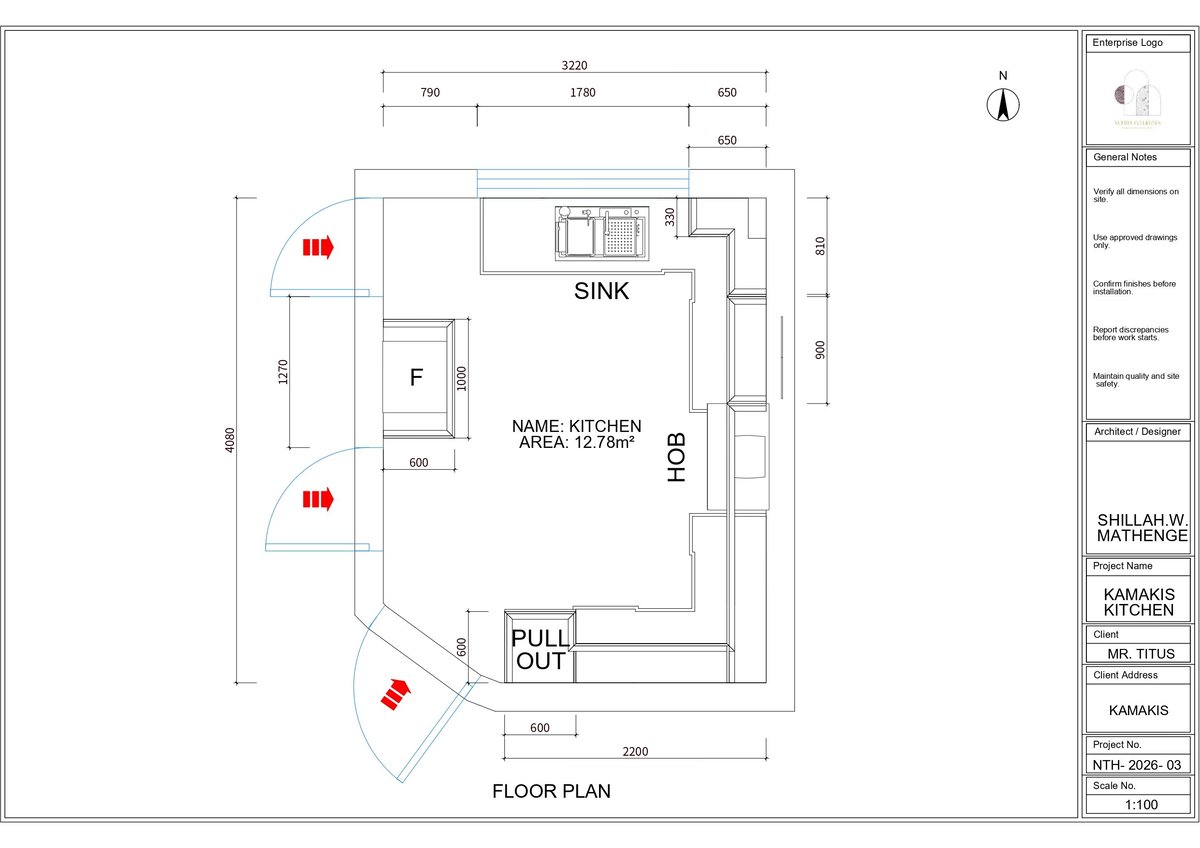

Architectural floor plan of a kitchen layout showing sink, refrigerator, stove, and pull-out pantry with measurements and dimensions labeled

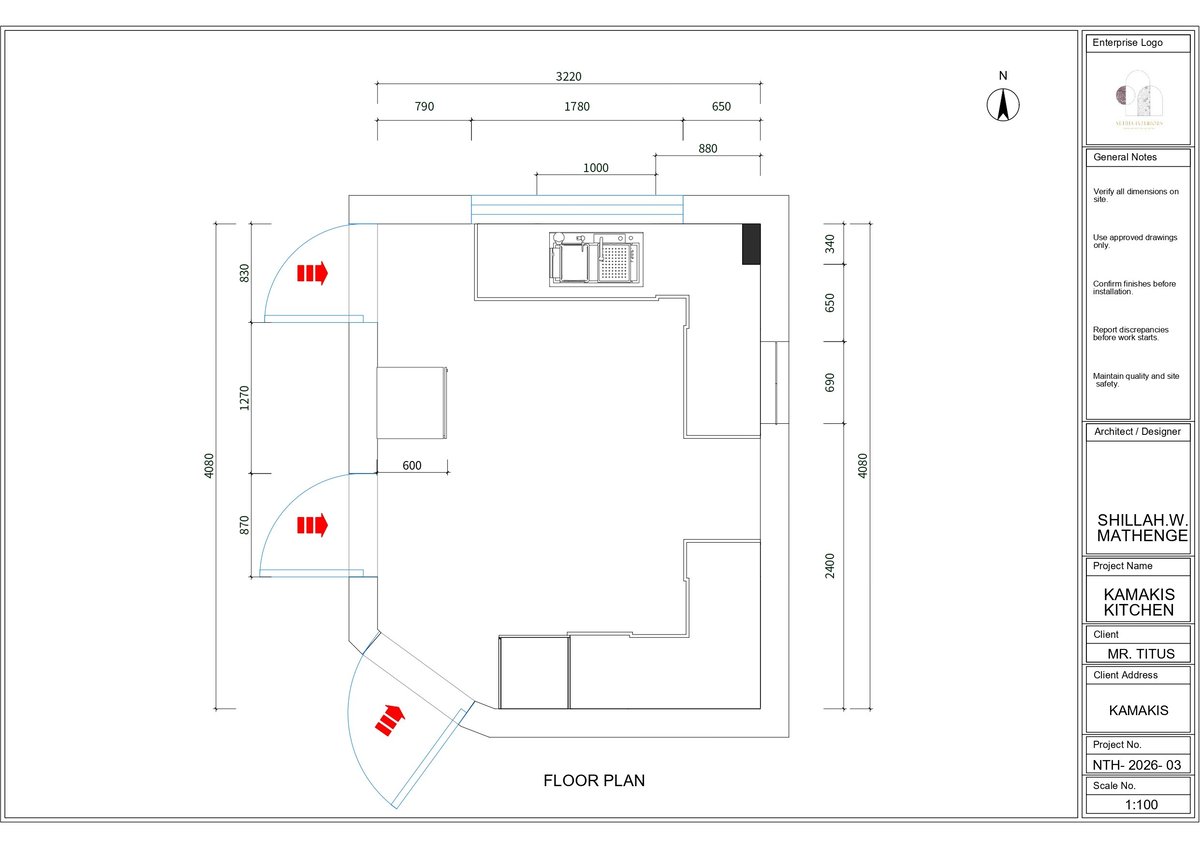

Architectural floor plan showing room layout with dimensions, door placements, and furniture positioning for a residential space

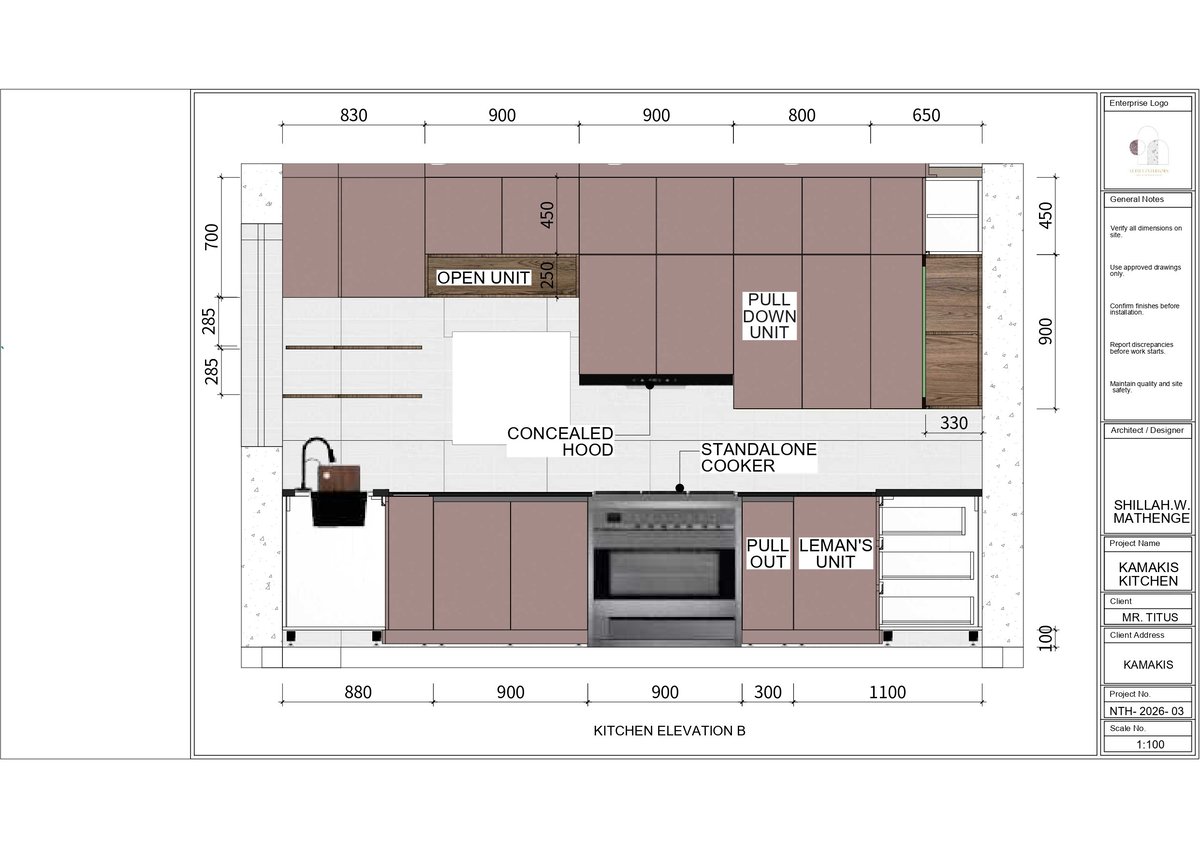

Kitchen floor plan and elevation showing layout with appliances, measurements, and design specifications.

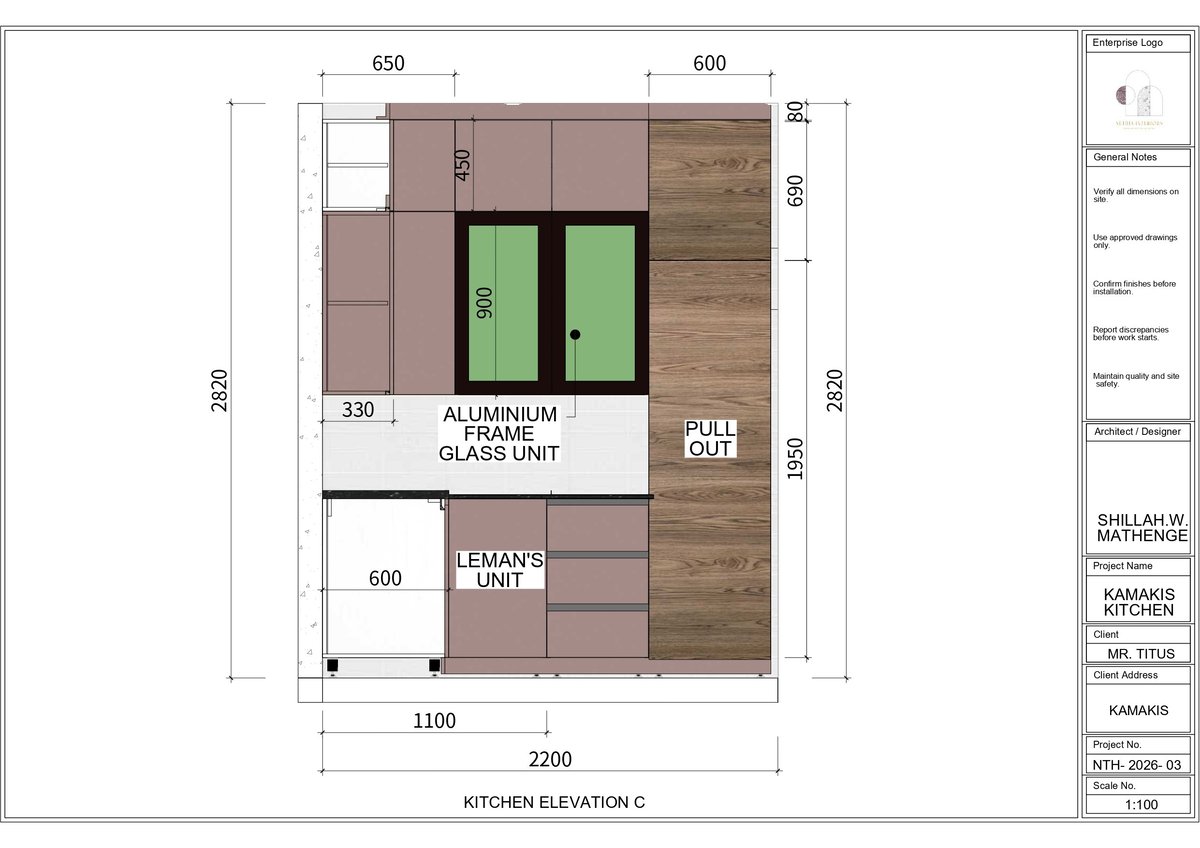

Kitchen elevation C floor plan showing aluminum frame glass unit, wall unit, and full height cabinets with dimensions and measurements

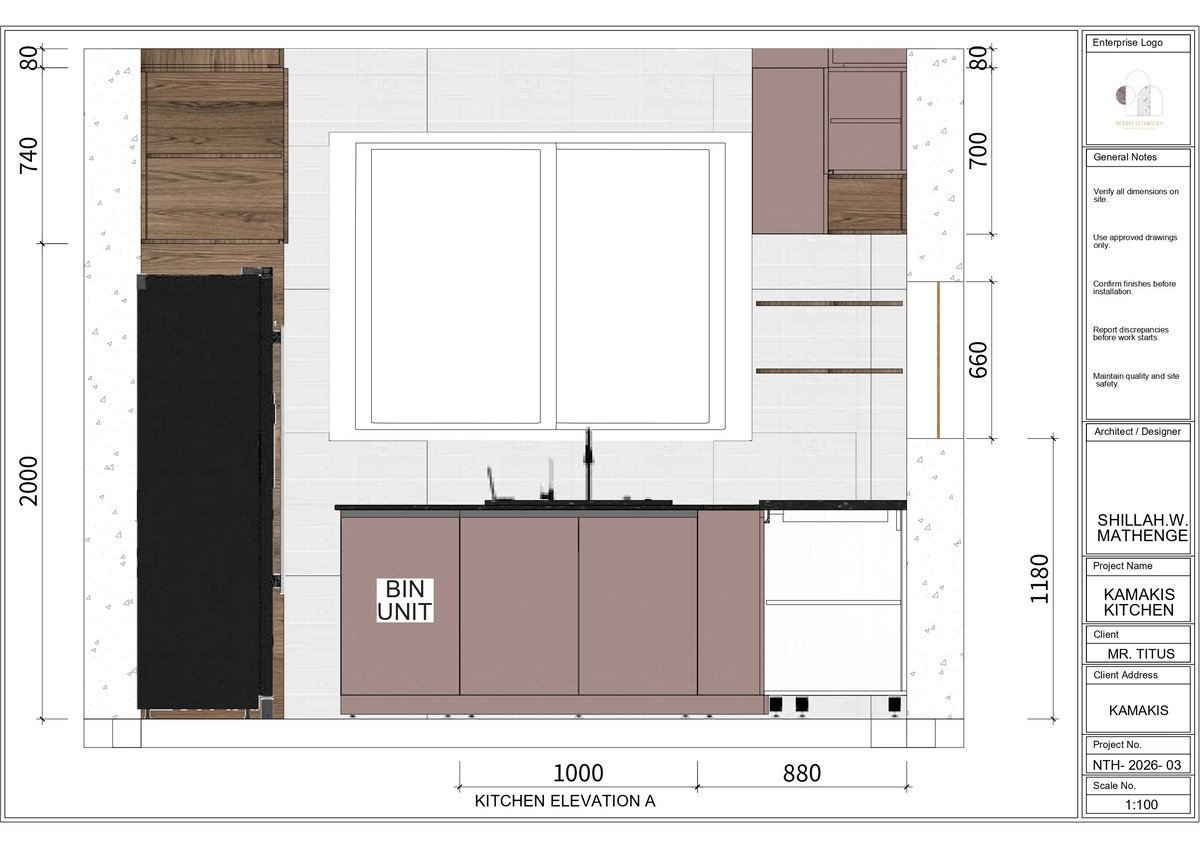

Kitchen floor plan and elevation drawing showing layout with cabinets, countertops, and measurements in millimeters

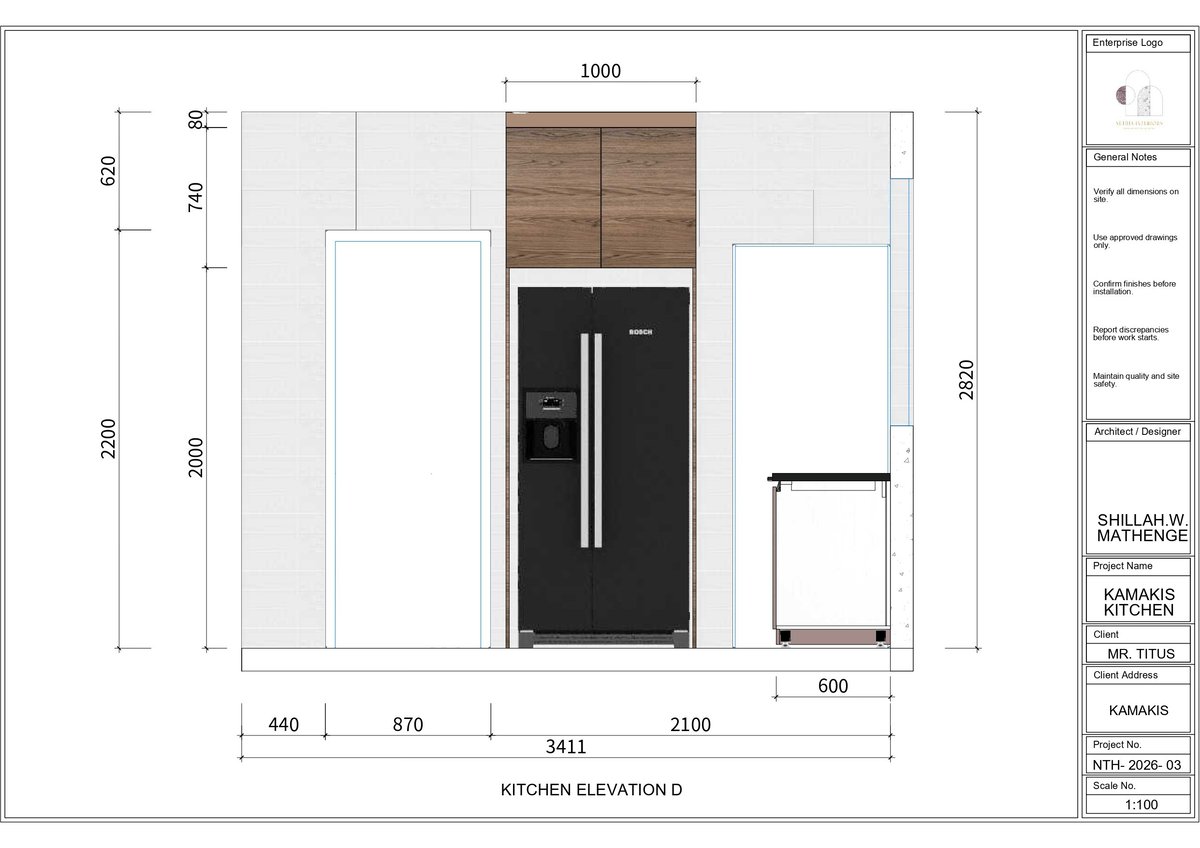

Kitchen elevation design showing wall layout with wooden upper cabinets, black refrigerator with handles, and measurements in millimeters
